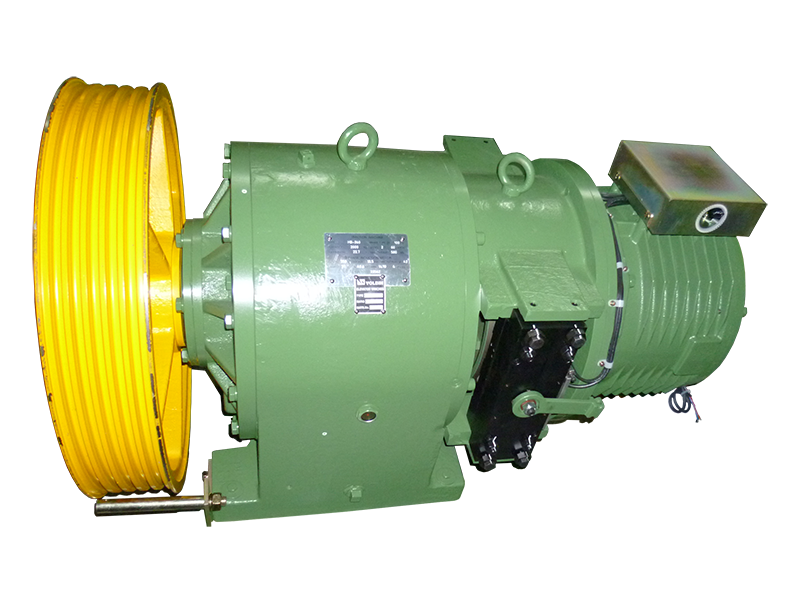

Product Details
Main Shaft Load：7000/10000 kg
Weight Approx.：700/900 kg
Motor：
- Rated Voltage：170V~195V/340V~380V
- INS. Class：F class
UCMP Certified Models
Brake：
- Voltage：DC 100V
Encoder：
- Ø30 Hollow Type 1024 P/R
- Voltage：DC 12V
| Model | Duty Load (kg) | Speed (m/min) | Roping | Ratio | MAIN SHEAVE | Motor | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| Dia.(PCD) (mm) | Rope (mm) | Pitch (mm) | Power (kw) | Poles | Frequency (Hz) | |||||
| HB360 | 1500 | 30 | 2:1 | 1/22.7 | 580 | Ø12 | 19 | 5.5 | 4 | 22.5 |
| 45 | 9 | 22.5 | ||||||||
| 60 | 13 | 49.6 | ||||||||
| 3000 | 30 | 6 | 25.5 | |||||||
| 45 | 13 | 38.2 | ||||||||
| 2000 | 60 | 18.5 | 49.6 | |||||||
| 30 | 580 | 11 | 25.5 | |||||||
| 45 | 15 | 38.2 | ||||||||
| HB360F | 2500 | 60 | 22 | 49.6 | ||||||
| 30 | 13 | 30 | ||||||||
| 45 | 19 | 44.4 | ||||||||
