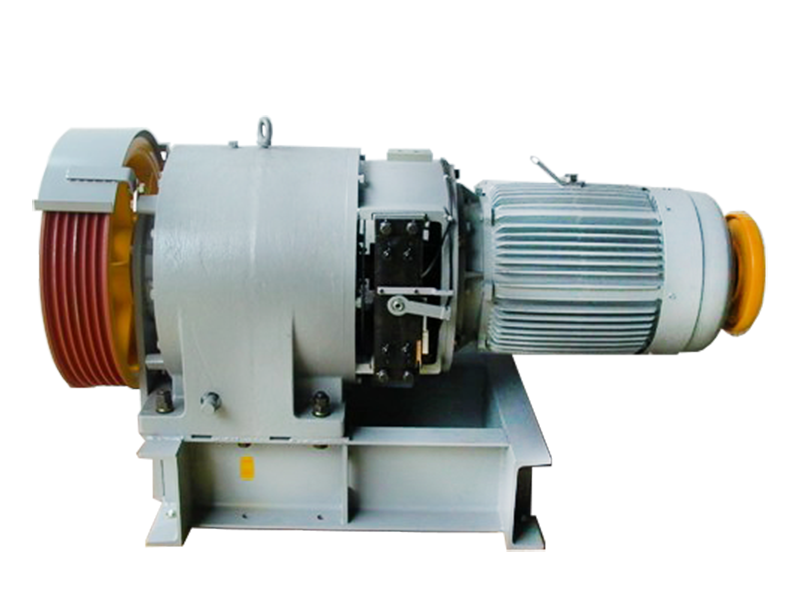

Product Details
Main Shaft Load：12000/16000 kg
Weight Approx.：1450/1600 kg
Motor：
- Rated Voltage：180V~200V/360V~380V
- INS. Class：F class
UCMP Certified Models
Brake：
- Voltage：DC 100V
Encoder：
- Ø30 Hollow Type 1024 P/R
- Voltage：DC 12V
| Model | Duty Load (kg) | Speed (m/min) | Roping | Ratio | MAIN SHEAVE | Motor | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| Dia. (PCD) (mm) | Rope (mm) | Pitch (mm) | Power (kw) | Poles | Frequency (Hz) | |||||
| HB620 | 3000 | 30 | 2:1 | 1 / 33.5 | 650 | Ø12/Ø16 | 19/23 | 15 | 4 | 33.5 |
| 45 | 19 | 50 | ||||||||
| 60 | 1 / 18.5 | 26 | 35.3 | |||||||
| 3500 | 30 | 1 / 33.5 | 15 | 33.5 | ||||||
| 45 | 22 | 50 | ||||||||
| 60 | 1 / 18.5 | 30 | 35.3 | |||||||
| 4000 | 30 | 1 / 33.5 | 19 | 33.5 | ||||||
| 45 | 26 | 50 | ||||||||
| 60 | 1 / 18.5 | 34 | 35.3 | |||||||
| HB620F | 5000 | 30 | 1 / 33.5 | 26 | 33.5 | |||||
| 45 | 34 | 50 | ||||||||
Production Assembly
Attachment
| # | Name | Upload Date | Description | Download |
|---|---|---|---|---|
| 1 | 主機載重表 | 2020-08-04 | 主機載重表 |
