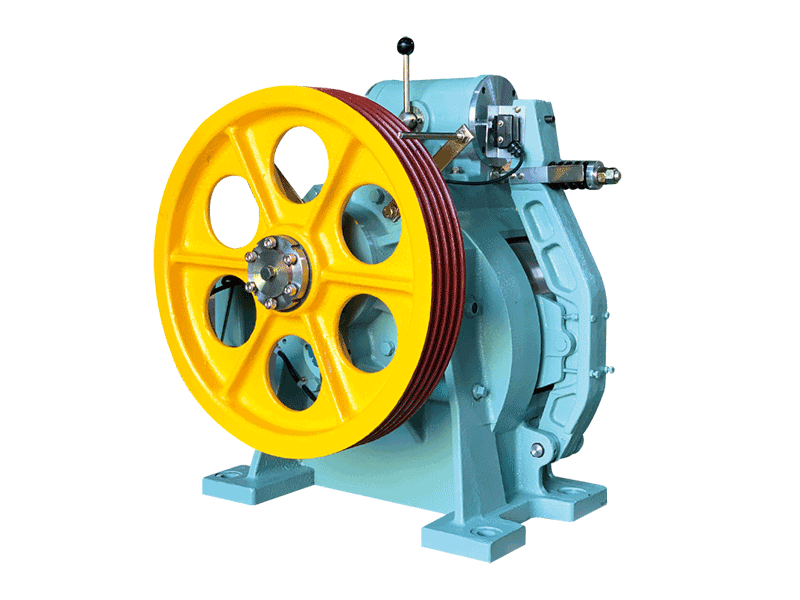

Traction Machine PMG10-3500

Model No.: PMG10-3500

Detail

Product Details

Main Shaft Load:3500 KG
Weight Approx.:360 KG
Roping:1:1
Motor:
  • Rated Voltage:AC 180/360V
  • INS. Class:F class
Advantage:
  • PM helical gear traction machines are suitable for replacing the old traction machines with new ones under the roping 1:1.
  • Compared with traditional worm and worm gear models, helical gears are more efficient.
  • Energy efficient, compact, and have low replacement cost.
Brake:
  • Voltage:DC 100V±10%
Encoder:
  • Pulse generator 2048C/T
  • Voltage:DC 5V
Lubricant:HD 320



Traction Machine PMG10-3500





Duty Load   (kg) Car Speed   (m/min) Roping MAIN SHEAVE Motor
Dia(PCD)(mm) Rope
(mm)
Power
(kw)
Poles Rated Speed
(rpm)
450 90 1:1 ψ520 ψ10 X 3~4/ψ12 X 3~4 5 60 187
60 ψ520 ψ10 X 3~4/ψ12 X 3~4 3 60 125
45 ψ520 ψ10 X 3~4/ψ12 X 3~4 3 60 94
600 90 1:1 ψ520 ψ10 X 3~4/ψ12 X 3~4 7.5 60 187
60 ψ520 ψ10 X 3~4/ψ12 X 3~4 5 60 125
45 ψ520 ψ10 X 3~4/ψ12 X 3~4 5 60 94
750 90 1:1 ψ520 ψ10 X 3~4/ψ12 X 3~4 7.5 60 187
60 ψ520 ψ10 X 3~4/ψ12 X 3~4 5 60 125
45 ψ520 ψ10 X 3~4/ψ12 X 3~4 5 60 94
