Traction Machine P4-2000-A

Model No.: P4-2000-A

Detail

商品細節

Main Shaft Load:2000 kg
Weight Approx.:150 kg
Motor:
  • Rated Voltage:208V / 360V / 415V
  • INS. Class:F class

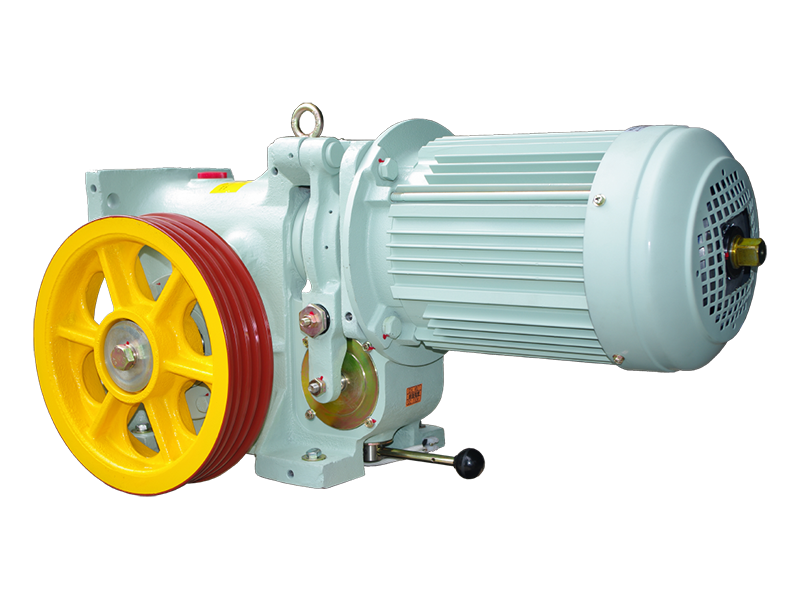

Left-hand or right-hand are both available.  (Left-hand shown)
Horizontal type or vertical type are both applicable.  (Horizontal type shown)
Brake:
  • Voltage:DC 110V
Encoder:
  • ψ30 Hollow Type  1024 P/R
  • Voltage:DC 12V



MAIN SHEAVE A B C D
ψ280 X 4V X ψ8 152 15 10 62
ψ320 X 3V X ψ10 150 32 27 60
ψ320 X 4V X ψ8 152 32 27 62



Traction Machine P4-2000-A





Duty Load
(kg)
Speed
(m/min)
Roping Ratio MAIN SHEAVE Motor
Dia.(PCD)
(mm)
Rope
(mm)
Pitch
(mm)
Power
(kw)
Poles Frequency
(Hz)
320 30 1:1 2 / 49 ψ280 ψ8 X 4 14 1.5 6 40
ψ320 ψ8 X 4 / ψ10 X 3 14 / 16 2.2 42
320 45 1:1 2 / 49 ψ280 ψ8 X 4 14 3 4 40
ψ320 ψ8 X 4 / ψ10 X 3 14 / 16
320 30 2:1 2 / 49 ψ320 ψ8 X 4 / ψ10 X 3 14 / 16 2.2 4 50





Production Assembly

Traction Machine P4-2000-A
Traction Machine P4-2000-A
Traction Machine P4-2000-A
Traction Machine P4-2000-A
Traction Machine P4-2000-A
Traction Machine P4-2000-A
Traction Machine P4-2000-A
Traction Machine P4-2000-A





Attachment

# Name Upload Date Description Download
1 主機載重表 2020-08-04   主機載重表
