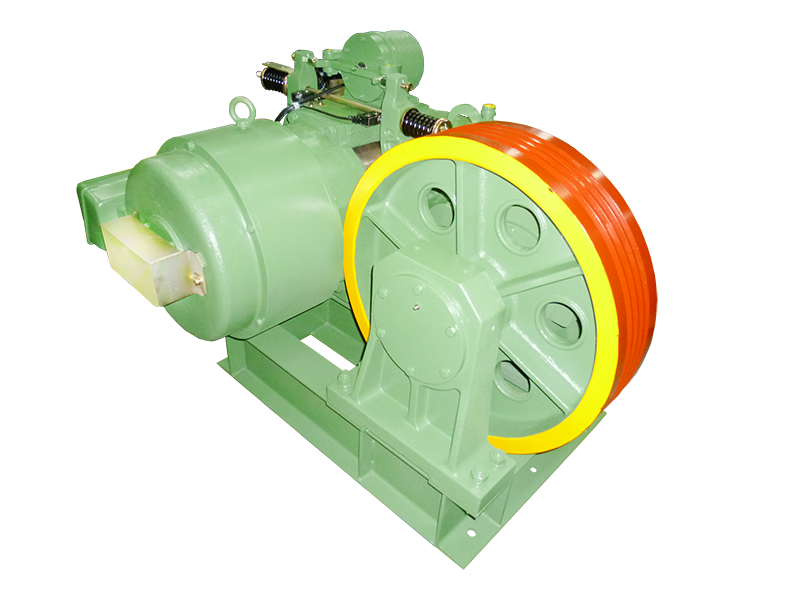

Product Details
Main Shaft Load：8500 kg
Weight Approx.：1000 kg
Motor：
- Rated Voltage：180V~220V/350V~380V
- INS. Class：F class
Brake：
- Voltage：DC 100V
Encoder：
- ψ8 Hollow Type 1024 P/R
- Voltage：DC 10.8V~26.4V
| Duty Load (kg) | Speed (m/min) | Roping | Ratio | MAIN SHEAVE | Motor | ||||
|---|---|---|---|---|---|---|---|---|---|
| Dia.(PCD) (mm) | Rope (mm) | Pitch (mm) | Power (kw) | Poles | Frequency (Hz) | ||||
| 2000 | 30 | 2:1 | 1 / 44 | ψ650 | ψ12 / ψ16 | 19 / 23 | 9 | 4 | 44 |
| 45 | 1/ 25 | 13 | 38 | ||||||
| 60 | 1/ 25 | 18.5 | 50 | ||||||
| 90 | 1 / 17.5 | 26 | 52.5 | ||||||
| 2500 | 30 | 1 / 44 | 11 | 44 | |||||
| 45 | 1 /25 | 18.5 | 38 | ||||||
| 60 | 1 /25 | 22 | 50 | ||||||
| 90 | 1 / 17.5 | 33 | 52.5 | ||||||
| 3000 | 30 | 1 / 44 | 13 | 44 | |||||
| 45 | 1 /25 | 22 | 38 | ||||||
| 60 | 1 /25 | 26 | 50 | ||||||
| 90 | 1 / 17.5 | 40 | 52.5 | ||||||
| 3500 | 30 | 1 / 44 | 15 | 44 | |||||
| 45 | 1 /25 | 22 | 38 | ||||||
| 60 | 1 /25 | 30 | 50 | ||||||
| 90 | 1 / 17.5 | 45 | 52.5 | ||||||
