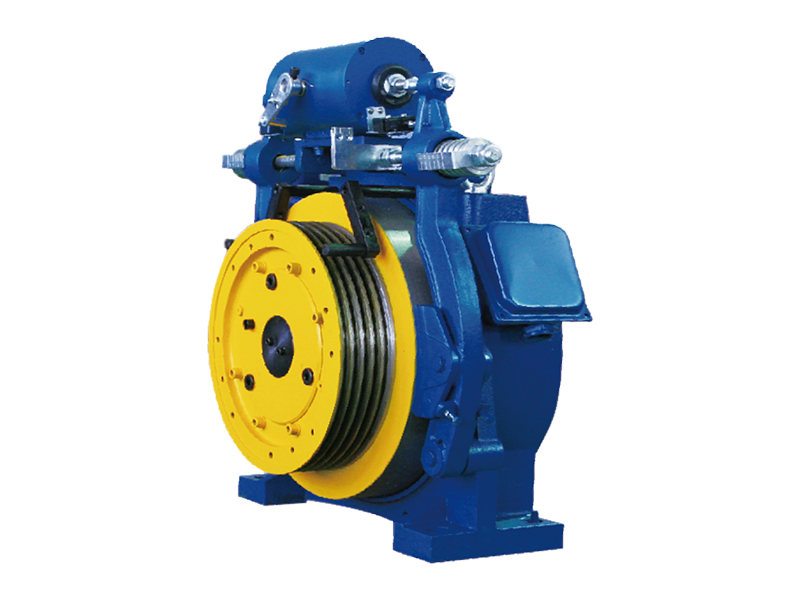

Product Details
Rated Voltage：AC 220V/AC 380V
Roping：2：1
Rated duty load：450 ~ 630 kg
Rope warping method：Single
Car Speed：30 ~105 m/min
Protection Class：IP41 Standard
nsulation Class (INS. Class)：F class
Traction machine poles：20
Start frequency(times / hour)：240
Rating：S5-40%
| Model | Capacity (kg) | Speed (m/min) | Speed of elevator (m/min) | Sheave (mm) | Num | 繩徑 (mm) | Pitch (mm) | Voltage (V) | Current (A) | Rated speed (rpm) | Rated Frequency (Hz) | Power (kw) | Rated torque (Nm) | Shaft Load (kg) | Machine weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PM6BD-5500 | 450 | 60 | 30 | ψ400 | 4 | ψ10 | 16 | 220 / 380 | 7.7 / 4.2 | 48 | 8 | 1.6 | 320 | 5500 | ≈450 |
| 90 | 45 | 13.4 / 7.7 | 72 | 12 | 2.4 | ||||||||||
| 120 | 60 | 13.4 / 7.7 | 96 | 16 | 3.2 | ||||||||||
| 180 | 90 | 19.5 / 11.2 | 144 | 24 | 4.8 | ||||||||||
| 192 | 96 | 21.7 / 12 | 153 | 26 | 5.1 | ||||||||||
| 210 | 105 | 22.5 / 12.4 | 168 | 28 | 5.6 | ||||||||||
| PM10BD-5500 | 630 | 60 | 30 | ψ400 | 4 | ψ10 | 16 | 220 / 380 | 10.3 / 5.6 | 48 | 8 | 2.3 | 460 | ||
| 90 | 45 | 18.6 / 10.4 | 72 | 12 | 3.5 | ||||||||||
| 120 | 60 | 18.6 / 10.4 | 96 | 16 | 4.6 | ||||||||||
| 180 | 90 | 27 / 15.3 | 144 | 24 | 6.9 | ||||||||||
| 192 | 96 | 32 / 17.8 | 153 | 26 | 7.4 | ||||||||||
| 210 | 105 | 34.5 /20.2 | 168 | 28 | 8.1 |
