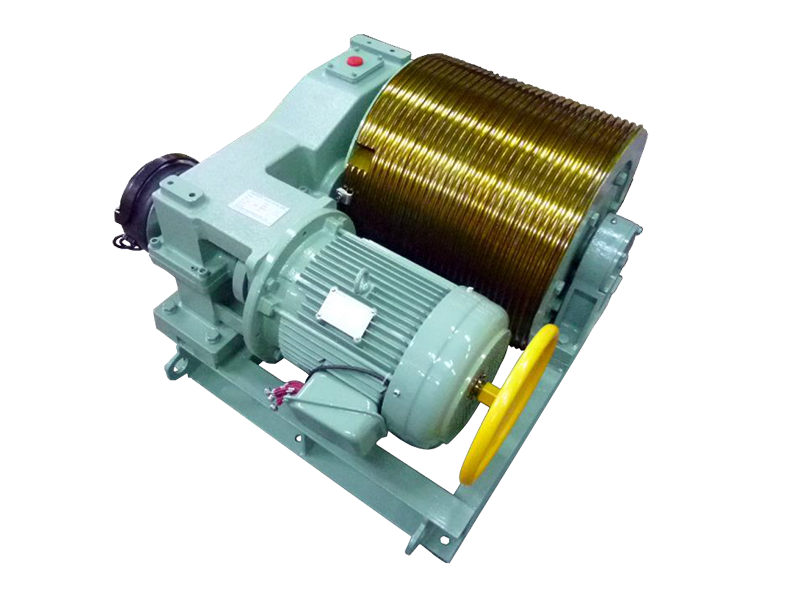

Product Details
Main Shaft Load：900KG
Weight Approx.：470KG
Motor：
- Rated Voltage：208V / 360V
- INS. Class：F class
Brake：盤式煞車器(Disc Brake)
- Voltage：DC 100V
Encoder：
- ø30 Hollow Type 1024 P/R
- Voltage：DC 12V
| Load(P+Q) (kg) | Speed (m/min) | Ratio | Rope (mm) | Roller (mm) | Effective Hoist Height (m) | Motor | |||
|---|---|---|---|---|---|---|---|---|---|
| Power (kw) | Poles | Hz | rpm | ||||||
| 800 | 30 | 1/72.7 | ø12x2 | 480 | 15 | 5.5 | 4 | 50 | 1450 |
Production Assembly
Attachment
| # | Name | Upload Date | Description | Download |
|---|---|---|---|---|
| 1 | 主機載重表 | 2020-08-05 | 主機載重表 |
