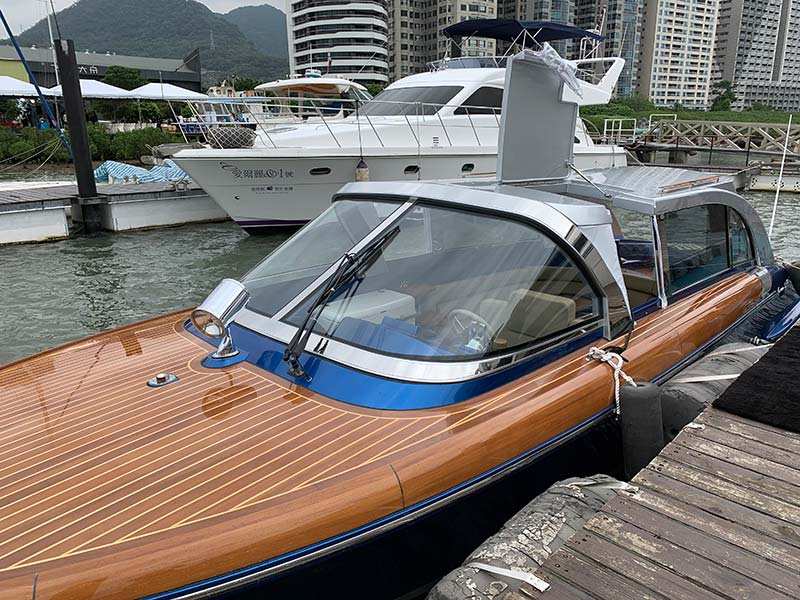

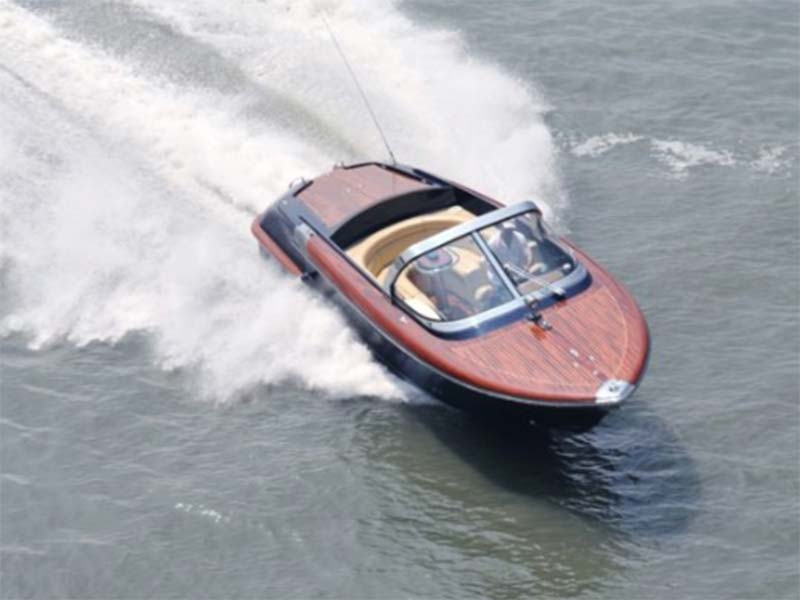

AQUASENSE33 Hybrid

型號: AQUASENSE33

細節

AQUASENSE33 複合動力高速遊艇規格

全長:10.07m / 33ft
水線長:8.41m / 27.6ft
船寬:2.80m / 9.2ft
吃水深:0.55m
排水噸位:5.93T
複合動力系統:
  • Twin YANMAR ENGINE:260hp / 4000rpm
  • Twin NAGAOKA Motor:25kW(@1500rpm)
  • Battery Pack:330Vdc / 70Ah / 23kWh
全船速:32kts (Diesel ENGINE MODE)
巡航船速:28kts(Pure-Diesel ENGINE MODE) / 7kts(Pure-Electric Mode)
燃油箱:200L
淡水箱:100L
乘客數:8 位





AQUASENSE33 HYBRID SYSTEM SPECIFICATION

ITEMS NAME SPEIFICATION QUANTITY
1 Diesel Engine 260hp (190kW)/ 4000rpm 2
2 E-Motor 25kW / 1500rpm(Rating Power) 2
3 Motor Driver 60kW(Rating Power) 2
4 E-Clutch 24Vdc 2
5 High Voltage Battery Pack 330Vdc / 70Ah /23kWh 1
6 DC-DC Convertor 4kW(Input: 240~430Vdc to 14.4Vdc) 1
7 Bi-directional DC-AC Convertor 15kW(Input:250~435Vdc to 120Vac)
15kW(Input: 90~264Vac to 250~435Vdc)
1





AQUASENSE33 HYBRID SYSTEM OPERATION MODE & HMI

HYBRID SYSTEM OPERATION MODE  DESCRIPTION
Pure-Electric Mode  Main E-Motor ON / Main Diesel Engine OFF,speed up to 7 knots
Pure-Diesel Engine Mode  Main Diesel Engine ON / Main E-Motor OFF ,no power generation,speed up to 32 knots
Genset Mode  Main Diesel Engine ON / Main E-Motor OFF ,E-Motor power  generation ,speed up to 32 knots
Hybrid Mode  Main E-Motor ON(@0~1500rpm,over 1500rpm Stop) / Main Diesel  Engine ON (@ Speed Over 1500rpm),E-Motor power generation , speed up to 32 knots
Boost Mode  Main E-Motor ON / Main Diesel Engine ON,boosting acceleration from 0 knot to 7 knots
Dock Charge Mode  Only supply boat power charge use
